KLINKAU FILTER PLATE

Klinkau 牌壓濾式脫水板可採用各種不同材質之濾板,如聚丙稀(PP), EP, PVDF 濾板. 板框呎吋由 470mmx470mm 至 2,000mm x2,000 mm. Klinkau 壓濾式脫水板 已經便用在很多世界性頂級如 德國 Netzsch 牌壓濾脫水機上.

膜片式壓濾機主要用途:

-需要高壓擠壓之產品。
-形
強硬需要清洗之產品。
-過濾液需要回收之
產品。
-縮短
污泥注入泵浦擠壓脫水工作時間,減短過濾脫水批次時間,或再提高泥餅固體率 (Dry Solid %)。


Klinkau (Germany) Membrane filter plates can be provided in sizes 470mm up to 2000mm x 2000mm with and without stay-boss support in cake thicknesses up to 50mm (before squeeze).

The KLINKAU Membrane Plate product line can be supplied in polypropylene, polypropylene modifications, EP (santoprene ), and PVDF membrane material.

Many thousands of Klinkau membrane plates in Fixed Welded - Standard, Fixed Welded (Empty Chamber) and Replaceable Overhanging (Empty Chamber) are in operation worldwide.

The KLINKAU Fixed Welded Membrane Plate product line includes corner or center feed arrangements. The KLINKAU Fixed Welded Membrane Plate is manufactured with a center core body plate and two molded membrane sections welded to each side of the center core body to form the complete filter plate.

The membranes have two defined hinge lines, i.e. one for the filtration phase and one for the squeezing phase; therefore risk of hinge failure has been minimized.

The movement of the membrane causes bending stresses, which can adversely affect the membrane’s ability to resist chemical attack. The KLINKAU Membrane Plate has been designed to counteract the bending stresses by constructing a " flexible area " instead of a " flexible point" to diminish the surface tension. Due to the "flexible area" design, the membrane can be constructed thicker than most standards. This design offers greater physical strength and resistance to chemical attack.

The center core of the Membrane plate is profiled to prevent the membrane from completely closing against the center core body. A distribution of the squeezing medium is possible through the whole area of the membrane at the beginning of the squeeze phase. This procedure guarantees a consistently even movement of the membrane.

The membrane is supported by the center core, i.e. it is supported inside to guarantee a controlled and gentle membrane movement during the filtration phase. The well-rounded contour of the membrane allows unhindered movement of the membrane and better cake release.

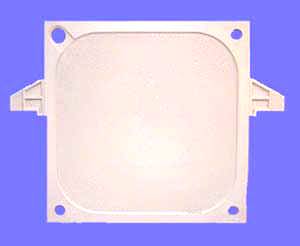

Corner Feed Plate

Center Feed Plate

Corner Feed Membrane Plate

Center Feed Membrane Plate

膜片式濾板(MEMBRANE PLATES):

採用膜片擠壓式濾板可以縮短過濾脫水之週期,並提高泥餅之乾度 (DS%).

如果需要的話,加以有效的泥餅清洗處理可得到均質的泥餅。



back to top

The membrane plate can be supplied as an "ALL" membrane plate stack arrangement or as a "MIXED PACK" arrangement (membrane plates alternated with recess chamber or flush plates ).

KLINKAU GmbH + Co. developed the "MIXED PACK" arrangement in 1982 to provide an alternative solution to lower initial capital investment costs of the membrane plate package by approximately 25% without affecting the performance results.

The KLINKAU "Empty Chamber" Membrane Filter Plate design was the next evolutionary advancement in polypropylene filter plate technology.

Many filtration processes differ in solids content and filtering characteristics that may cause the risk of uncontrolled filling of the chamber.

This uncontrolled chamber filling during the pressure filtration stage and/ or differential pressures may initiate insufficient chamber fillings or empty chambers. Subsequently, the risk of damage to the membranes is quite possible.

The goal of the "Empty Chamber" design was to take the risk out of premature membrane failures.

The "Empty Chamber" design was developed so the membrane would be adequately supported not only during the pressure filtration filling phase but as well as squeezing into the empty chamber. The design prevents an overstretching and consequently prevents damage to the membrane. Klinkau 鼓脹膜(membrane plate)不論在填泥 (filling)/濾泥 (Filtration)階段或在高壓水或高壓空氣注入濾板與膜片加壓渣階段(Squeezing), 均防止因無泥填於濾板間,因鼓張而損毁膜片(Membrane leaf).

Applications 應用實例

Klinkau Empty Chamber design 無泥注入保護運作原理

膜片式壓濾機在污泥注入泵浦過濾脫水程序後,使用高壓水或高壓空氣注入濾板與膜片之間,鼓脹膜片擠壓濾餅強迫釋出殘餘水份,完成膜片擠壓程序後,釋出擠壓水或空氣. Klinkau 牌膜片採用無泥注入保護, 大大減低因無泥注入以導致鼓脹膜片擠壓空心濾板所帶來的傷害.

Empty Chamber Plate Operation

 如欲了解淤泥注入濾板過濾脫水程序,請按此

註: 流动中的黄色代表淤泥,藍色代表已濾出水,綠色代表注入濾板與膜片之間的高壓水或高壓空氣.紅色是濾布,包着濾板.

Empty Chamber Membrane Plate

Empty Chamber Companion Plate

"Empty Chamber" Membrane Plate

"Empty Chamber" Companion Plate

back to top

 REPLACEABLE MEMBRANE - "EMPTY CHAMBER" DESIGN

All of the advantages and experience of the many thousands of welded KLINKAU Membrane Plates in operation were retained in the development of the KLINKAU Replaceable Membrane Plate.

Overhanging Plate Operation

The KLINKAU Replaceable Membrane Plate is a membrane plate in the "Empty Chamber" design with customer requested feed eye arrangement.

The membrane plate is supplied with a center body plate installed with full gasket sealing around the sealing surfaces and filtrate corner holes. The replaceable membranes are easily installed to the center body plate with stainless steel retaining rings and block/clip attachments for the top and bottom of the plate.

The design is available with or without stay-bosses and allows unrestrictive movement of the membrane.

The membranes can also be supplied with other core body plates such as ductile iron, aluminium, or stainless steel.

The Replaceable Membrane Plate system incorporates membrane plates and companion recess chamber plates in the "Mixed Pack" design.

The KLINKAU Replaceable Membrane has specific strength in the area of the sealing frame to take the closing pressures of the filter press.

The membrane has rubber-like flexibility in the piped areas of the filter plate.

The membrane can be easily replaced in a few minutes even after years of operation without taking the plate out of the filter press.

The KLINKAU Replaceable Membrane Plate can be used in any application where high filtration and squeeze pressure rates (up to 450psig) are required.

 Replaceable Overhanging Membrane Plate

Companion Recessed Chamber Plate

Replaceable Membrane Plate

Companion Recessed Chamber Plate

back to top

Applications 應用實例

KLINKAU RETROFIT PROJECTS



KLINKAU and us can provide the know how capability to review, analyze, and recommend the best filter plate choice for your filter plate retrofit project.

We can visit your installation, review your requirements, provide an analysis on the economical and technological impacts, and provide the necessary information to make a smooth conversion process for your retrofit project.

We can also provide the highest quality start up / commissioning services in the filtration industry.

Klinkau Filter Plates 濾板在香港的項目參考

項目名稱

型号

型号

呎吋

香港渠務署 西貢污水處理廠

Side bar Mixed Chamber - PP濾板

E &J

1300x1300

香港渠務署 赤柱污水處理廠

Overhead Mixed Chamber- PP濾板

R&B

1200x1200

香港渠務署 石湖墟污水處理廠

Side Bar Mixed Chamber-- PP濾板

E&J

1500x2000

九龍巴士大埔車廠污水處理廠

Manual Side bar

LES

700x700

香港水務署 大埔濾水廠

Side Bar Mixed Chamber-PP濾板,

Netzsch

1500x2000

賽馬會粉嶺双魚河会所污水處理廠

Manual Side bar

US Filter

900x900

香港水務署 上水濾水廠

Side Bar Mixed Chamber

E&J

1500x1500

Overhanging PP Plate with Tilting mechanism for automatic sludge discharge ( Klinkau /Netzsch Patented )

Klinkau專利 上吊板自动開板及自动脫泥装置

其他配套如 Netzsch P.C.Pump 也可供應

Klinkau Plates 1500x2000mm onto Netzsch Filter Press Machine at Tai Po Water Treatment Works

上水濾水廠選用了兩台德國 Netzsch 牌脫水機,板框用PP料, 1.5米乘2米高,全自动開板及自动脫泥,在不須操作員清理板上沾着淤泥餅. 效果極好.

了解自动開板原理(Overhead Type Plate shifter ),請按此

了解自动脫泥 原理 (Long Tilting Frame for Automatic sludge discharge),請按此

Klinkau PP 板100% 完全適合更換在任何品牌, 任何呎吋,無論是吊式 (Overhanging) 或旁拉式 (Side Bar). 漸進部份更換或全數更換.( Partial replacement or total replacement).

back to top

Replacement Proposal of the existing Filter Plates gradually when they are leaked.

Klinkau plate performance and its specific Empty Chamber feature allows longer operating lifetime even though the sludge filling amongst all filter plates are uneven which induces uneven distribution of filling pressure across the filter plates.

Klinkau membrane skin is easier to detach and replace and it would be done even the plates are hanging over the machine, but still maintaining a sound sealing performance.

Klinkau PP plates are now designed with removable handles which give you a higher flexibility to remove the plates for regular washing.

Klinkau PP plate is much lighter than Mild Steel plate which we can extend the lifespan of the civil foundation and the plate shifting mechanism. Also it has a higher degree of safety in operation and maintenance.

For an initial trial pack set, it is including :

One (1)  Head plate ( which is a Recess plate with 1 flat side faces toward the fixed end ) ;

One (1) Membrane Plate (already with overhanging membranes) ;

One (1) End Plate (which is also a Recess Plate but one side faces toward the membrane plate, one flat side is designed for ultimate facing the moving end ) ;

One (1) Adapter ( 2 sides are flatted which will be finally removed upon all plates at the machine are replaced by Klinkau system, and then it can be transferred to any machine if it has never been putting any Klinkau plates anymore).

See sample pack as below..

例 : 分期漸進更換至全數更換.两类板,PP 及包膠生鐵板可一同使用,不須改动任何设定.

back to top
全港市政淤泥脫水機板框用料一覧

地点 Location 部门 脫水機品牌 呎吋 板框

马鞍山濾水廠 (自來水) Ma On Shan WTW 香港水務署 E&J 1500x1500 生鐵包膠
牛潭尾濾水廠 (自來水) Ngau Tam Mei WTW 香港水務署 E&J 2000x2000 生鐵包膠
上水濾水廠 ( 自來水) Sheung Shui WTW 香港水務署 E&J 1500x1500 生鐵包膠
小壕灣濾水廠 (自來水) Siu Ho Wan WTW 香港水務署 E&J 1500x1500 生鐵包膠
銀礦灣濾水廠 (自來水) Silvermind Bay WTW 香港水務署 LES 1200x1200 PP
屯门濾水廠 (自來水) Tuen Mun WTW 香港水務署 LES 1200x1200 PP
大埔濾水廠 ( 自來水) Tai Po WTW 香港水務署 Netzsch 1500x2000 Klinkau, PP
凹頭濾水廠 ( 自來水) Au Tau WTW 香港水務署 Netzsch 1500x2000 生鐵包膠
北港濾水廠 ( 自來水) Pak Kong WTW 香港水務署 Netzsch 1500x2000 生鐵包膠
西貢汚水處理廠 Sai Kung STW 香港渠務署 E&J 1300x1300 Klinkau PP
石湖汚水處理廠 Shek Wu Hui STW 香港渠務署 USFilterE&J 1300x1300 PP
長洲汚水處理廠 Cheung Chau STP 香港渠務署 E&J ? 生鐵包膠
石湖汚水處理廠 Shek Wu Hui STW 香港渠務署 E&J 1300x1300 生鐵包膠
大埔汚水處理廠 Tai Po STW 香港渠務署 E&J 1500x2000 生鐵包膠
元朗汚水處理廠 Yuen Long STW 香港渠務署 E&J 1500x2000 生鐵包膠
马灣汚水處理廠 Ma Wan STP 香港渠務署 LES 1200x1200 PP
赤柱汚水處理廠 Stanley STW 香港渠務署 R&B 1200x1200 Klinkau PP
梅窩汚水處理廠 Mui Mo STW 香港渠務署 R&B 1000x1000 PP
back to top

How Membrane Process works

Mechanism of Cake Scraping

Applications 應用實例

Material Comparison between Mild Steel rubber Coated Plate and PP Plates
