Gereg Flap Valve

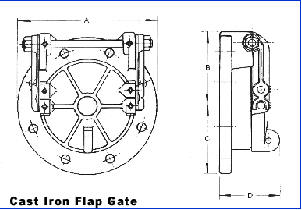

These are used in walls or on
the ends of pipes to prevent reversal of flow, and consist of a frame
with a gate or flap which is hinged at the top. In order to ensure
proper closure against the frame, the gate is double hung, by means of
stainless steel pins in bronze bushes.

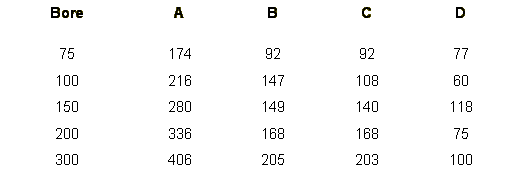

The smaller sizes, leading dimensions of which are tabulated below, are
generally of cast iron, but can also be cast in stainless steel, and
have bronze or stainless steel sealing faces.
Larger sizes, having square or rectangular openings, are fabricated from
stainless, corrosion-resistant, or mild steel, and are usually supplied
with neoprene seals
