Ecologix 總部設在美國 (USA),是全亞洲最大的曝气系統供應商,在臺灣建立亞洲辦事機構,本公司作為香港代理可與香港及華南地區提供密切聯系.
設備優勢
藝朮設計的曝气系統已廣泛應用于傳統活性污泥氧化溝( Activated sludge treatment ),活性污泥消化(Aerated Digestion ) 高BOD廢水,制革,啤酒,造紙,屠宰,食品加工,紡織印染和市政污水採用生物余磷化氮工藝中.
Ecologix曝气頭提供高效的氫氧轉移效率(OTE%),而且只需要極少維修保養,其經久耐用性在各個污水處理工藝中得到了廣泛的証實.
- 采用先進的薄膜材質 EPDM.
- 豉風時微孔張開,停止豉風時微孔閉合並不會堵塞,低阻力,高充氧效率.
- 專為市政污水和工業廢水設計.(Designed for Municipal and Industrial Waste water Applications )
- 微細泡布气,均勻及高效地充氧 ( Fine bubble dispersion with high transfer efficiency )
- 有效防止薄膜特性的改變 (Membrane Deformation)
- 密封(O-ring)可防止接頭空气泄漏.

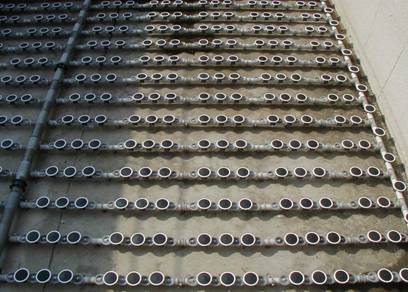

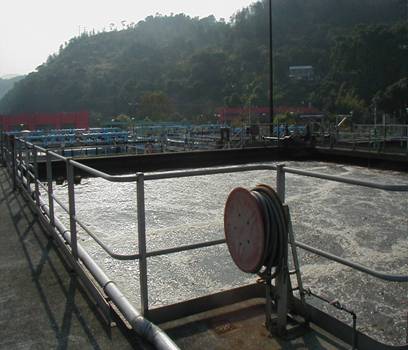

例証:香港西貢污水廣轉微孔膜式曝气系統. Ecologix 235mm diam. EPDM , Fine Bubble Air Diffusion System
很簡易地安裝在任何uPVC 喉上. 其獨特管道夾( Saddle Clamp ) 設計可以把 曝器頭 (Diffuser Dome) 直接安裝在固有管道上. 而且完全不用更換uPVC 管道.很具效益.
此設計安裝在西貢污水處理廠的所有活性污泥消化池, 全部更換舊有的瓷質曝器頭,但仍保留所有管道及配件. 整個項目在很經濟的情况下完成.
其 EPDM 膜 更可以換在其他品牌的曝器頭內. EPDM其特殊的合成橡胶,是為污水處理廠專門设計的. 該材料能够 :
抗變形 / 彈性大 / 厚度恰到好处,可大大減少曝气膜的受力和壓損 / 抗油,抗UV / 寿命長 ( 在保持高效率氧气输送的前提下) /無堵塞.
以先後為污水處理廠供應/ 更換了 EPDM薄膜曝气头.:
西貢污水處理廠 (更換 Ceramic Fine Bubble Diffuser 曝器头),
沙田污水處理廠(供應 Sanitaire曝器膜) ,
赤柱污水處理廠(供應 Nopol曝器膜)
元朗污水處理廠

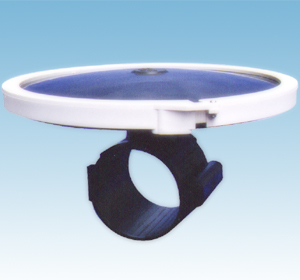

附圖：Ecologix 曝气頭及喉管接頭 Saddle Clamp

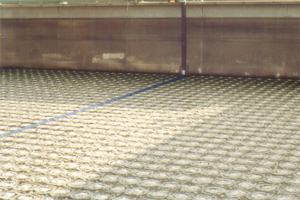

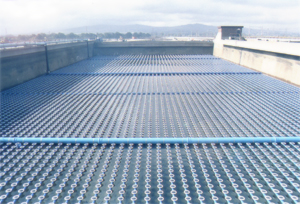

20,000 頭曝气頭安装實例 實地 試气泡

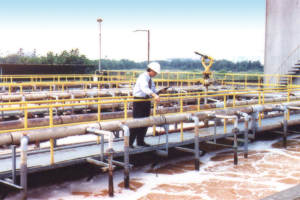

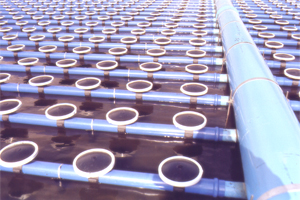

Ecoflex 安装實例 容氧量測試 (DO Test)
|

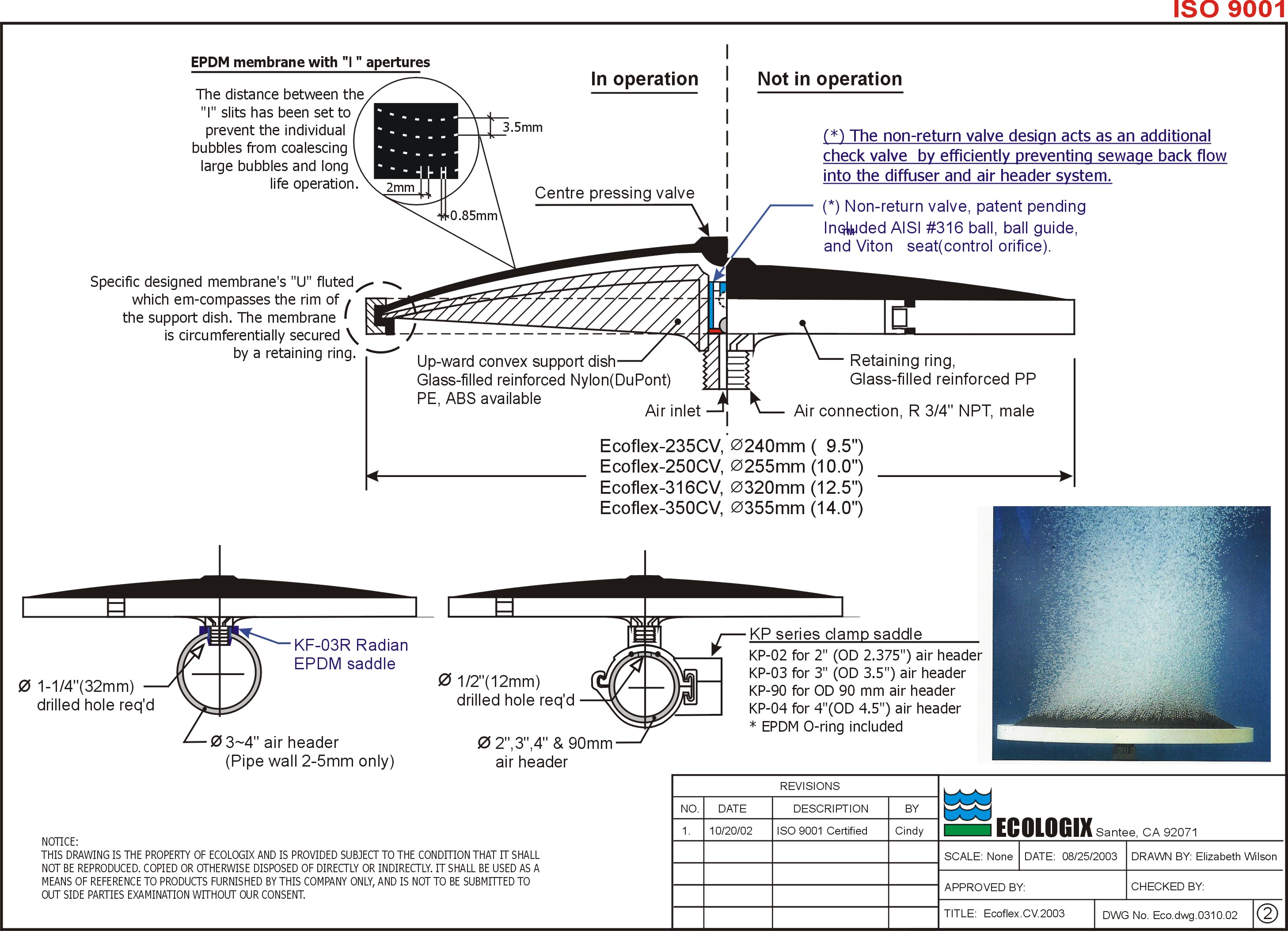

Technical Data技術規格 |
Ecoflex – 235 型 |
Ecoflex - 316型 |
|
Material
質料 |
High grade EPDM, Hardness 60°± 5 shore; Viton® available |
|
|
- Support dish 支撑碟 |
玻璃强化PA, 或可用ABS Upward convex type, glass filled reinforced PA; ABS available |
|
|
- Retaining clamp 管道夾 |
玻璃强化PP, 或可用ABS Glass filled reinforced Polypropylene, ABS available |
|
|
Diameter 直徑 |
|
|
|
Effective bubbles diffusion area 有效面績 |
|
|
|
Size of bubble 气泡呎吋 |
1...3 mm |
|
|
Connection (air inlet) 管道接駁 |
|
R 1/2" NPT,R 3/4" NPT available |
|
Air flow
曝气量 最佳連續運作 |
|
|
|
Operation time per day on request 每天特定操作 |
|
|
|
Operation temperature range 温度 |
|
|
|
Weight 整個重量 |
|
|
9.5"
(240mm)
(0.036m
/h)
2.5~4.0cfm
(4.0~7.0mEcologix ... The worldwide largest producer of membrane diffusers with ISO 9001 registration (SGS)
Ecologix Technologies, Inc. has established itself as a successful and widely-known company in the field of membrane diffusers manufacturing company.
Ecologix professional research for disc and tubular membrane diffuser, insist on manufacture of slots membranes (disc and tubing), support parts and clamp-on saddles in United States, then over through the worldwide warehouses doing the installation process, and deliver the products to customers promptly with a low cost.
Under the recommendation of professionals in consulting and engineering from different countries and nations, we reach the goal as the number one sales record in Asia pacific.
The Ecologix membrane diffusers were developed for special applications in water and wastewater aeration. Their outstanding features are the possibility to using them in all processes of Activated Sludge System, SBR operation, Contact Bio-reactor, Oxidation Ditches and Oxygenation for fish pond.
In both retrofit and new installations, Ecologix diffusers lower installation and operation cost by providing:
Excellent
oxygen transfer efficiency and low head-loss
Back
flow prevention, Non-clogging and self cleaning
Unique
mounting saddle allows great flexibility in the choice of air pipe
material and size
Minimal
maintenance and membrane replace available
The Ecologix's aeration products have been used as fine bubble aerators for oxygen supply in municipal and industrial biological sewage treatment plants and water purification works.
5 advantages for the Ecologix membrane membrane diffusers:
High
Oxygen Transfer Rate
Equally distributed fine pores on the diffuser membrane, consistently
produce 1...3mm fine bubbles that increase the surface contact area with
wastewater, greatly increasing the oxygen transfer efficiency (OTE)
Reliably Intermittent Aeration Operation
Double sealing action prevents back-flow penetration of sewage and water when airflow is
Interrupted
Ecologix flexible membrane diffusers were developed for use in applications, which require fine bubble dispersion in aeration systems, which may be cycling on and off. This design feature prevents the backflow of water when the diffuser is not aerating
Constant Back Pressure
The self-cleaning design prevents clogging and is highly resistant to fouling.
Extended Lifetime Expectancy
EPDM membrane maintains elasticity and is resistant to even the most aggressive wastewater components.
Simple
Installation Procedures
Unique mounting saddle allows
great flexibility in the choice of air pipe material and sizes
| Ecoflex-10 | ||
 |
Membrane:
High grade EPDM Support dish: Fiberglass reinforced Nylon |
|
| Ecoflex-235, Ecoflex-316 | ||
 |
Membrane:
High grade EPDM Support dish: Fiberglass reinforced Nylon |
|
| Ecoflex-250, Ecoflex-350 | ||
 |
Membrane:
High grade EPDM Support dish: Fiberglass reinforced Nylon |
|
| Ecoflex-520 | ||
 |
Membrane:
High grade EPDM Support dish: Fiberglass reinforced Nylon |
|
| Hyotube series-7 | ||
 |
Membrane:
High grade EPDM, Santoprene, Polyurethane available Support tube: ABS. PVC available |
|
| Hyotube series-9 | ||
 |
Membrane:
High grade EPDM, Santoprene, Polyurethane available Support tube: ABS. PVC available |
|
Advantages ( Ecologix 產品優勝点 ) Material
-Membrane
The membrane is special product which includes an UV inhibitor and resistant to aggressive chemical attack, weathering and aging. With the special materials, we use the diffusers in municipal wastewater plants, also in industrial plants e.g. chemistry, textile, tannery and etc.
-Support device-
The support devices is made of fiberglass reinforced PA (Nylon), PP or ABS. This provides operation without the requirement for acid dosing.
In the manufacture of Ecologix, any series diffusers are developed for the quality of the membrane and support devices, because it is a decisive factor for both the operation life and the economic of aeration systems.
Uniform fine bubble Formation of expectance fine bubbles, leading to extremely high oxygen transfer efficiency, the distance between the membrane "I" slots has been set to prevent the individual bubbles from coalescing into larger bubbles.
High oxygen transfer efficiency When airflow is applied, the membrane's slots consistently produce 1~3mm fine bubbles that increase the bubble surface contact area with wastewater. This greatly increases the oxygen transfer efficiency resulting in lower air flow requirements and up to 50% energy reduction, this can substantially reduce the number of diffusers required, thereby providing a more economical install
Back flow prevention When the air supply is shut off, the membrane retracts, seals the "I" slots and pressed on the support device, sealing its air supply bore. Due to this double sealing mechanism, no wastewater can enter the diffusers and the air piping system.
Resistant to fouling When the air expands through the flexible membrane, any settled solids, slime or carbonate build-up are dispersed. This significantly reduces the possibility of clogging, plugging and fouling that critical in maintaining high oxygen transfer efficiency over the life and is ideal for interrupted, SBR system and automatic-dissolved-oxygen control applications.
Low energy consumption Low capital operation costs provide for an attractive return on investment (ROI). Many installations can provide for an immediate pay-back of capital investment.
Quality Survey Ecologix diffusers have been tested through more than 1,000,000 cycles expansion and contraction. The diffusers without a change in the ability of the slots to produce fine bubble and maintaining high oxygen transfer efficiency. (Tested by Y.Z. University)
